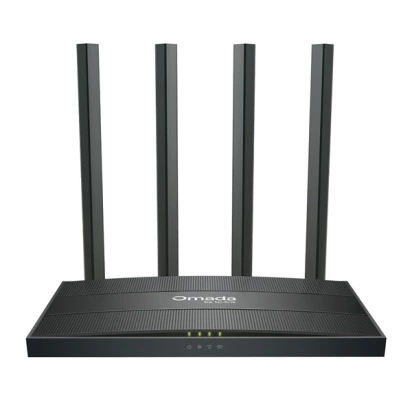

TP-LINK Vezetékes VPN Router 1xWAN(1000Mbps) + 4xLAN(1000Mbps), ER605

27 099 Ft

Számítógép Alkatrész

Hálózat

Switch

TP-LINK Vezetékes VPN Router 1xWAN(1000Mbps) + 4xLAN(1000Mbps), ER605

Cikkszám: 600462

Gyártó : TP-Link

Megbízhatóság: 100%

27 099 Ft

Garancia: 60 hónap

Várható átvétel

PCX átvevő pont	dec. 23
DPD Pont	dec. 30
Packeta	dec. 30
Foxpost	dec. 30
MPL Automata	dec. 30
DPD Futár	dec. 30
Posta Pont	dec. 30
MPL Futár	dec. 30
DPD Expressz	dec. 23
Nagy csomag	jan. 06

Tulajdonságok

10/100 LAN port: Nem

10/100/1000 portszám: 5

10Gbps LAN port: Nem

2,5Gbps LAN port: Nem

3G: Nem

3G mobilinternet: Nem

4G: Nem

4G mobilinternet: Nem

5G: Nem

5G mobilinternet: Nem

Akkumlátor: Nem

Csatlakozók: USB-A 2.0, UTP

Dual Band: Nem

Ethernet LAN (RJ-45) portok: 4

Gigabit LAN port: Igen

Gyártó: TP-LINK

Ipsec VPN: Van

LAN port: 2 db

LAN portok sebessége: 10/100/1000 Mbps

LAN portok száma: 2

Működési hely: Beltéri

Max. LAN sebesség: 1000

Max. WAN sebesség: 1000

Mesh Wi-Fi: Nem

PoE: Nem

PoE csatlakozó: Nem

Print szerver: Van

QoS Sávszélesség menedzsment: Nincs

Quad Band: Nem

Sebesség: 1000 Mbit

SFP csatlakozó: Nem

SIM: Nem

SIM foglalat: Nem

SIM KÁRTYA FOGLALAT: Nem

TERMÉK 4. szint: TP-Link

Típus: Vezetékes

Tri Band: Nem

USB csatlakozó: Nem

Verzió: 2.0

VLAN: Van

VPN: 20

WAN: 4

WAN port: 1 db

WAN portok sebessége: 10/100/1000 Mbps

WAN portok száma: 3

WAN/LAN port: 2 db

WiFi: Nem

Standards and Protocols	• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface	• 1 Fixed Gigabit WAN Port • 1 Fixed Gigabit LAN Port • 3 Changeable Gigabit WAN/LAN Ports
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button	Reset Button
Power Supply	External 9V/0.9A DC Adapter
Flash	SPI 16MB
DRAM	128 MB
LED	PWR, SYS, WAN, LAN
Dimensions ( W x D x H )	6.2 × 4.0 × 1.0 in. (158 × 101 × 25mm)

PERFORMANCE
Concurrent Session	25,000
IPsec VPN Throughput	41.5 Mbps

BASIC FUNCTIONS
WAN Connection Type	• Static/Dynamic IP • PPPoE • PPTP • L2TP
MAC Clone	Modify WAN/LAN MAC Address^†
DHCP	• DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP* • Multi-IP Interfaces*
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy

ADVANCED FUNCTIONS
ACL	IP/Port/Protocol/Domain Name Filtering
Advanced Routing	• Static Routing • Policy Routing
Bandwidth Control	• IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing^§, Failover) • Online Detection
NAT	• One-to-One NAT^§ • Multi-Net NAT • Virtual Server • Port Triggering^§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security	• SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management
Session Limit	IP-based Session Limit

VPN
IPsec VPN	• 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2* • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) *These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller
PPTP VPN	• PPTP VPN Server • 10 PPTP VPN Clients • 16 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • 10 L2TP VPN Clients • 16 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server* • 10 OpenVPN Clients* • 16 OpenVPN Tunnels*

SECURITY
Filtering	WEB Group Filtering^§ URL Filtering Web Security^§
ARP Inspection	• Sending GARP Packets^§ • ARP Scanning^§ • IP-MAC Binding^§
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
Access Control	Source/Destination IP Based Access Control

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password* • Hotspot(Local User / Voucher* / SMS* / Radius) • External Radius Sever • External Portal Sever • Facebook*

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance	• Time Setting • Diagnostic • Firmware Upgrade • Factory Defaults/Reboot • Backup&Restore • System Log • Remote Management • Statistics • Controller Settings • SNMP
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning)**

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• Gigabti VPN Router ER605 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide
Environment	• Operating Temperature: 0–40 (32–104 ); • Storage Temperature: -40–70 (-40–158 ) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
